VC7 Multi-format Standards Converter: Shibasoku The VC7 is a multi-standard integrated converter. With motion compensation algorithms, fast changing images (like sporting events) appear crystal clear. Simultaneous frame rate and video resolution conversions are supported.
With an optional board installed, the VC7 will convert 3D signals (either Side-by-Side or L + R) and different dual signals separately to any of the formats.
Input audio channels may be remapped to any other channel location on the output.
The VC7 also supports Dolby-E with the optional board installed.
The time codes, user specified labels, and audio channel information may all be viewed on the output monitor.
Features
Motion Compensation
Motion compensation algorithms are used when the frame rate is changed and input video is converted smoothly.
No motion compensation With motion compensation
No motion compensation With motion compensation
3D Video Conversion (Option)
The frame rate conversion of 3D signals is synchronized on either Side-by-Side or L + R signal types.
3D display VC7convert VC73D display VC7
Ex.:Input 1080/50i L+R Output 1080/59.94i L+R
Dual Conversion (Option)

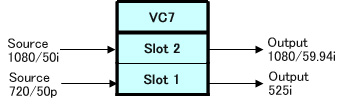

With the optional board installed, two separate signals may be converted simultaneously with one VC7 unit.
Two individual conversion VC7
Audio Channel Mapping

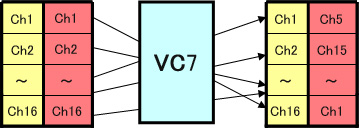

Any audio input channel may be mapped to any audio output channel.
Audio Channel Mapping VC7

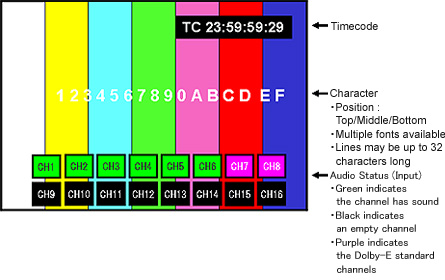

Time-code / User Labels / Audio Channel Information
When the frame frequency is converted, time-codes are converted, newly added, or registered time-code is inserted. They are selectable.
User Labels: Labels up to 32 characters may be assigned to specific regions.
Audio Channel Information: The status of each audio channel can be displayed at any time.
Audio Channel Mapping VC7
Remote / Watching

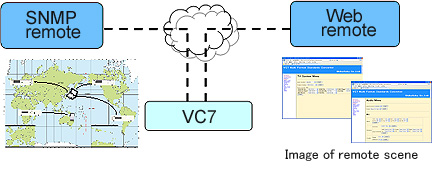

The VC7 may be controlled or monitored remotely. Two protocols are supported:
SNMP - Allows monitoring and remote control
HTTP - Allows remote control
Remote / Watching VC7
Conversion Format Mapping
Input signal formats are automatically recognized and a pre-selected conversion type is automatically selected.

Input Output
1080i/50 1080i/59.94
720P/50 720P/59.94
625i/50 525i/59.94

Dolby-E Audio

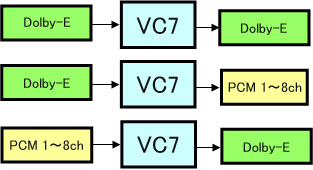

With the optional board installed, Dolby-E encode and decode is supported.
Dolby-E audio VC7
AFD (Aspect ratio)
AFD on the incoming signal is automatically detemined, and the output aspect ratio may be modified to 4:3, 13:9, 14:9, 15:9, or 16:9.
Scene Cut
When a scene change occurs, the motion compensation algorithms are automatically disabled while the new scene begins.
Closed Caption conversion
The VC7 can convert from / to the CEA608 and CEA708 standards.
Supporting Formats
in\out
1080/
59.94i
1080/
50i
1080/
29.97
PsF
1080/
25PsF
1080/
24PsF
1080/
23.98
PsF
720/
59.94p
720/
50p
525i
625i
1080/
59.94i
H
H
M
M
M
M
M
M
H
H
1080/
50i
H
H
M
M
M
M
M
M
H
H
1080/
29.97
PsF
M
M




M
M
M
M
1080/
25PsF
M
M




M
M
M
M
1080/
24PsF
M
M




M
M
M
M
1080/
23.98
PsF
M
M




M
M
M
M
720/
59.94p
M
M




M
M
M
M
720/
50p
M
M




M
M
M
M
525i
H
H
M
M
M
M
M
M
H
H
625i
H
H
M
M
M
M
M
M
H
H

1080i -SD model : H     Multi format model : M/H
